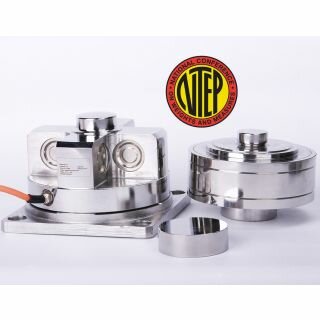

GF-11A Cross Beam Load Cell Alloy Steel

• One of its kind patented cross bridge load cell
• Strong four-direction side force resistance and overload protection
• Low profile
• Easy to install & use
• For electronic truck scale, railroad scale and large capacity hopper scales etc.

Specifications:
Rated Output (mV/V): 2.00±0.010
Nonlinearity: ±0.02%FS
Hysteresis: ±0.02%FS
Repeatability: ±0.01%FS
Creep (30 minutes): ±0.02%FS
Zero Balance: ±1.00%FS
Temperature Effect on Zero: ±0.02%FS/10°C
Temperature Effect on Output: ±0.02%FS/10°C
Input Resistance: 765±15Ω
Output Resistance: 700±5Ω
Insulation Resistance: ≥5000MΩ
Excitation Voltage: 10V(DC/AC)
Compensated Temperature Range: -10°C ~ 50°C
Operating Temperature Range: -20°C ~ 60°C
Safe Overload: 120%FS
Cable: 5.4x12 m
Cable Color Code: Input: Red (+) Black (-) Output: Green (+) White (-)
